Replaceable rubber lining for 8" (200 mm) wire saw pulleys. The ring seats on the pulley rim and carries the diamond wire, protecting the pulley body and keeping the wire running true.

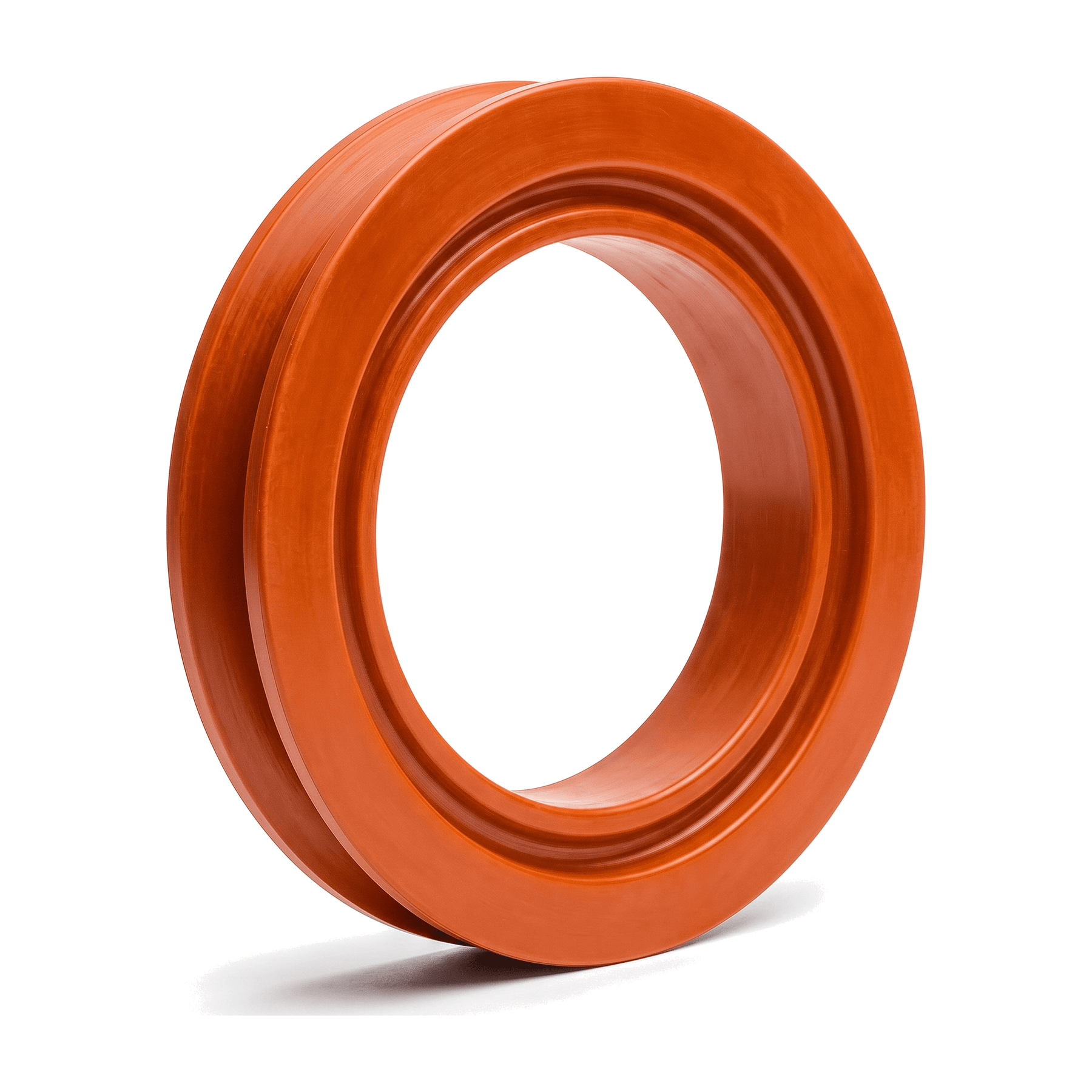

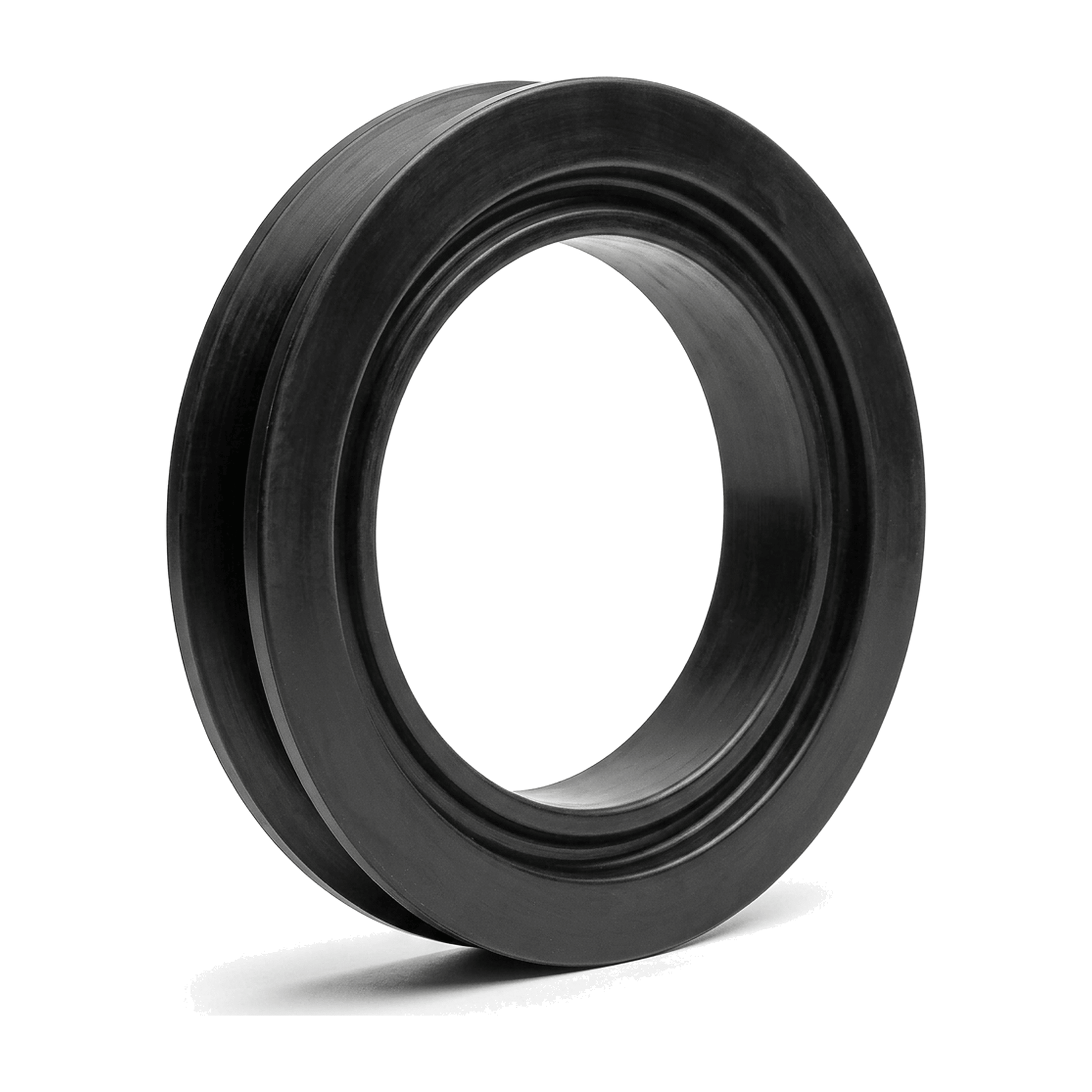

Two hardness grades, colour coded so the grade can be identified at a glance: black for medium and orange for hard.
FITS
DRIVE · DEFLECTION · STORAGE
SB · SK-B · WCU14 · WCU17 · WCE17 · WCH17 · CCE25 · CCH25
Model designations are for fitment reference only.
- Outer diameter 8" (200.0 mm) · inner diameter 135.0 mm · width 30.7 mm
- Two hardness grades — Medium (Black) and Hard (Orange)
- Fits drive, deflection and storage pulleys
- Six rings per pulley — 18 rings for a full machine set
- Wear part — replace once the wire grooves are worn
- Single ring, 6-pack or 18-pack

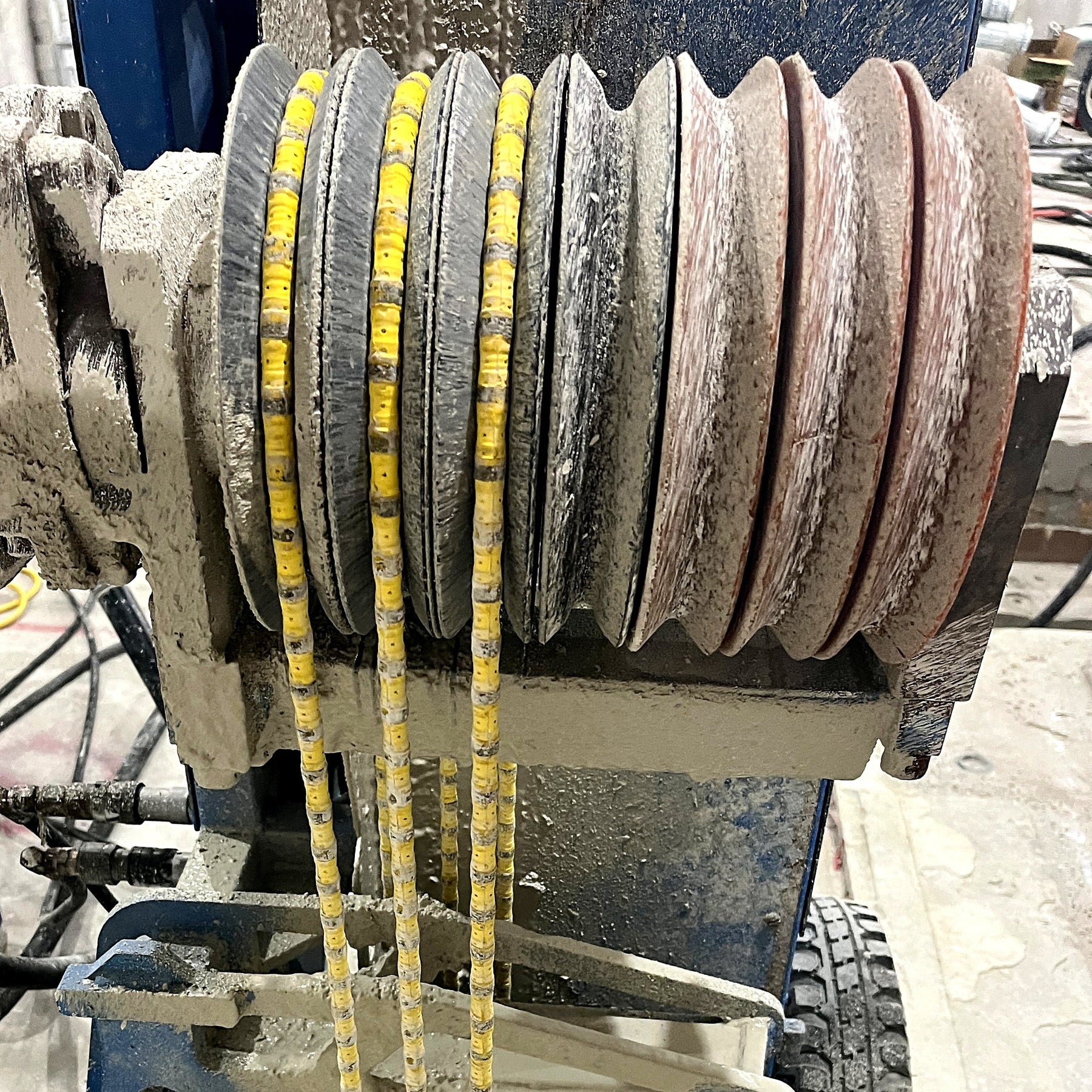

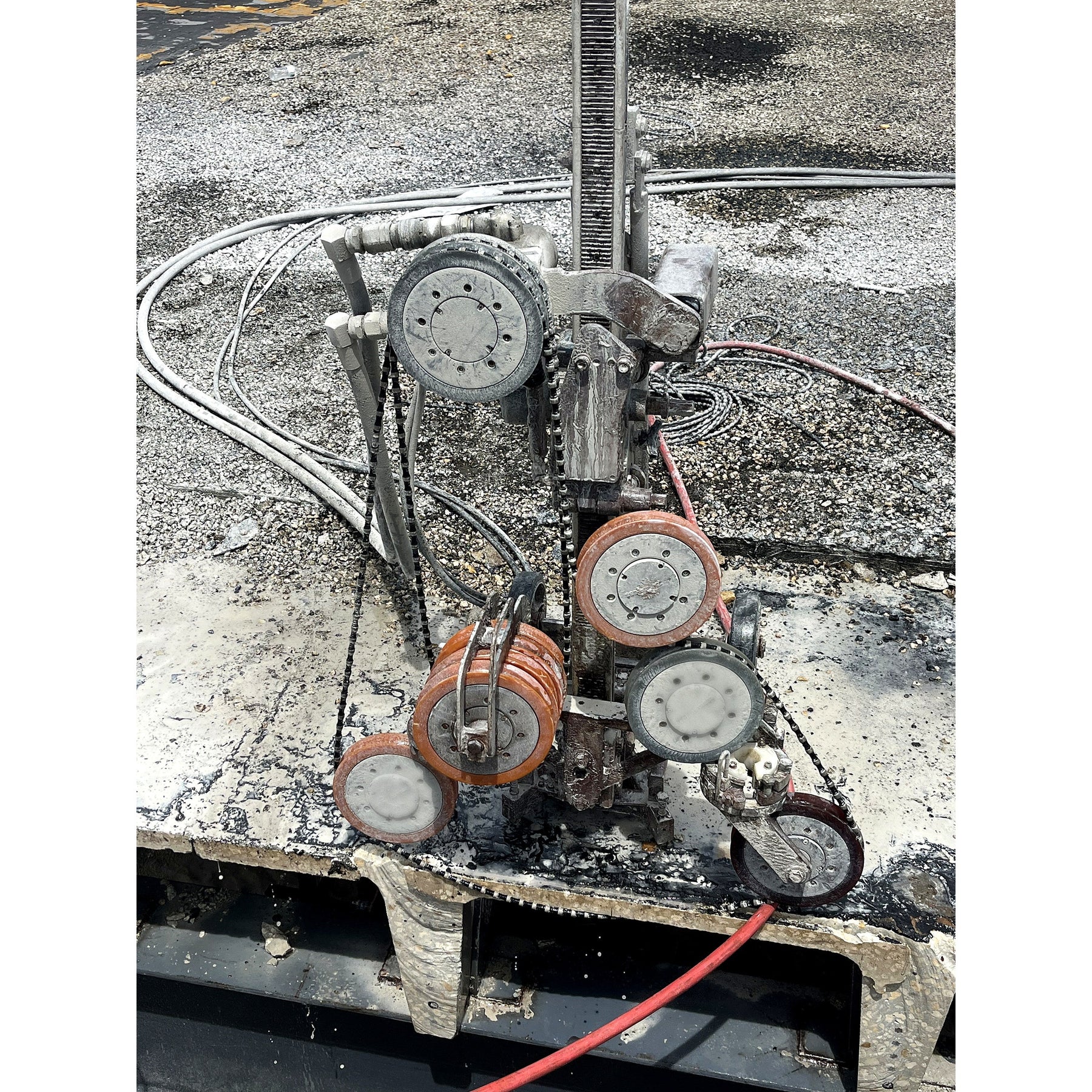

On the machine
Specification
| Outer diameter | 8" (200.0 mm) |
| Inner diameter | 135.0 mm |
| Overall width | 30.7 mm |
| Weight per ring | 650 g (1.43 lb) |
| Material | Moulded rubber |
| Hardness grades | Medium (Black) · Hard (Orange) |
| Pulley positions | Drive · Deflection · Storage |
| Rings per pulley | 6 |
| Rings per machine | 18 |
| Machine series | SB · SK-B · WCU14 · WCU17 · WCE17 · WCH17 · CCE25 · CCH25 |
| Manufacturer part number | PL200 (MESA DIAMOND®) |
Replaces 3408075 and 3401831
These numbers identify the part being replaced; they are not MESA DIAMOND® part numbers.
| 3408075 | Medium — order Medium (Black) |
| 3401831 | Hard — order Hard (Orange) |
Colour indicates the MESA DIAMOND® hardness grade and does not need to match the colour of the lining being replaced. Select the grade, not the colour.
PL200 is a MESA DIAMOND® aftermarket wear part. It is not an original equipment part and is not affiliated with, sponsored by or endorsed by any equipment manufacturer. All part numbers and model designations are the property of their respective owners and are used for identification and fitment reference only.
