WS20E / WS20H ServoPower Wall Saw – Maximum Power, Minimal Weight
The WS20 ServoPower wall saw delivers maximum cutting performance in a remarkably lightweight package. A long tool life and the world’s longest service interval for wall saws make it one of the most economical machines in its class.
The WS20 is available for two rail systems: the WS20E runs on the EURODIMA rail system, while the WS20H is built for the H-version rail system – so you can match the saw to the setup you already own.
Structurally identical feed and swivel motors, each fitted with a wear-free electromagnetic brake, keep spare-part needs low and further improve cost effectiveness. A powerful 20 kW servo motor drives the head with wear-free power transmission through a dampened claw coupling, while tool-free interlock and automatic cooling-water drainage make daily handling fast and simple.
Lightweight, durable and precise – engineered to keep working long after conventional saws need service.
- ServoPower drive with a powerful 20 kW servo motor for high torque at low weight
- Available as WS20E (EURODIMA rail) or WS20H (H-version rail system)
- World’s longest service interval for wall saws – service only after 250 operating hours
- Structurally identical feed and swivel motors with wear-free electromagnetic brake
- Lightweight saw head at just 29 kg with free blade height up to Ø 825 mm
- Wear-free power transmission via dampened claw coupling; tool-free interlock by hand lever
- Automatic cooling-water drainage – no after-cooling required
Whether you run the EURODIMA rail system with the WS20E or the H-version rail with the WS20H, the WS20 delivers unmatched power, precision and reliability on every cut.
Returns on machinery and powered equipment
This item is machinery / powered equipment and is not eligible for change-of-mind or incorrect-order returns. Please confirm the model, voltage, rail system and accessories with us before ordering — email sales@mesadiamond.com or call +1 305 391 3754 and we will confirm the correct configuration in writing.
This does not affect your rights if the item arrives defective, damaged in transit, or is not the item you ordered — those are handled at our cost under our warranty and return policy.
POWER MEETS PRECISION

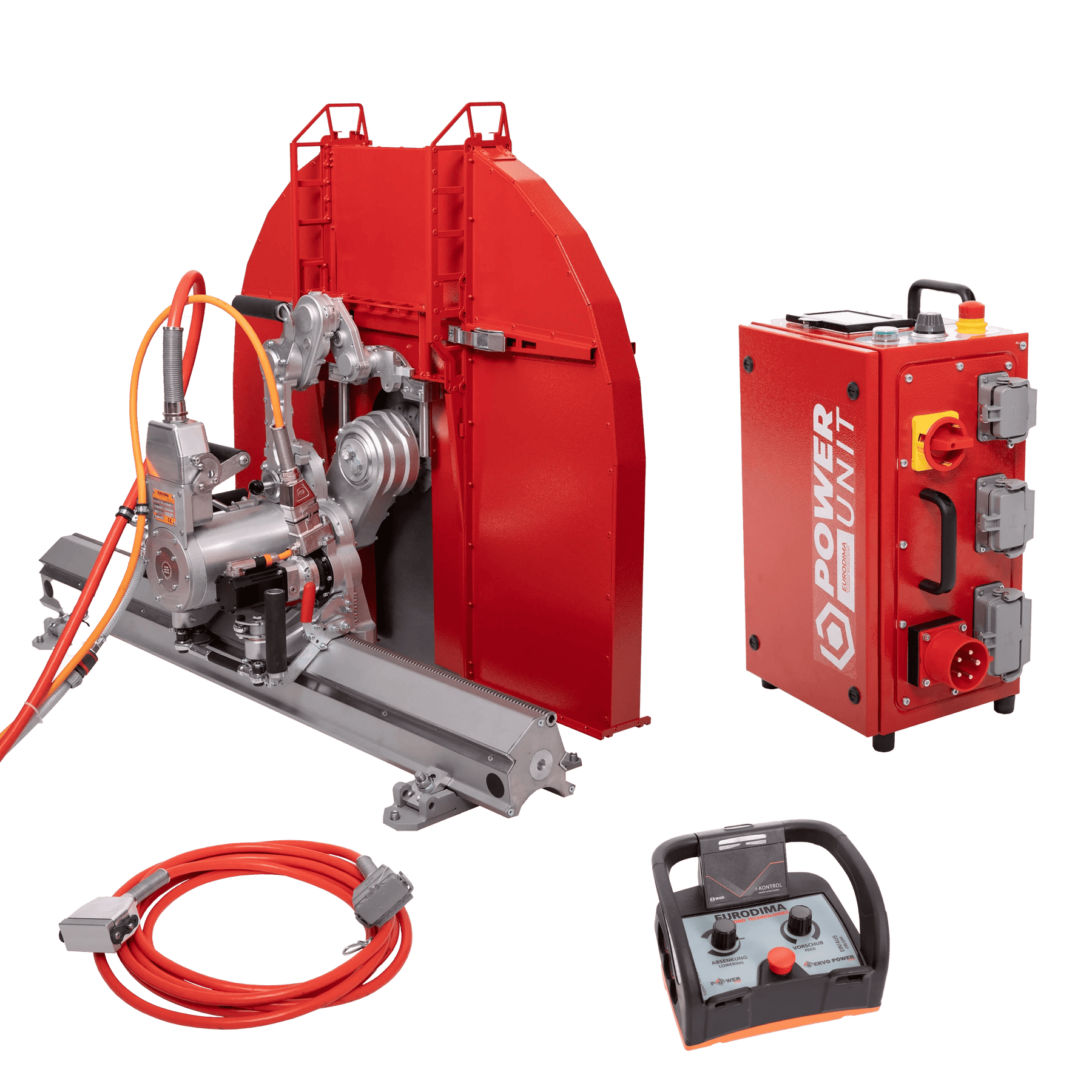

BASIC PACKAGE WS20E/H
WALL SAW HEAD
- Flush flange can be mounted or removed from the motor side
- Free saw blade height up to Ø 825 mm
- Quick interlock operation with a hand lever
- Enhanced roller system with axial and radial bearings
- Roller guide adjusts quickly without special tools
- Lightweight saw head—only 29 kg
- Extended service interval of 250 operating hours
- Feed and swivel motors share the same design for easy replacement
- Both motors are protected from overload by a friction clutch
- Maintenance-free electromagnetic brake
blade guard holder
• Easy assembly and disassembly
• Maintenance-free kinematics for reliable performance
• Compact, space-saving design
• Quick-release, tool-free blade guard fastening
• Automatic interlock system for synchronized swivel arm
DRIVE MOTOR
- 20 kW servo motor
- Wear-free power transmission via dampened claw coupling
- Tool-free motor interlock using a hand lever
- Automatic cooling-water drainage system
- Extended service interval after 250 operating hours
- No after-cooling required
Radio remote control ServoControl
- Simultaneous control of feed and swivelling
- Includes abdominal belt and two batteries
- Comes standard with a radio remote control
Guide rail stop
Use this section to explain a set of product features, to link to a series of pages, or to answer common questions about your products. Add images for emphasis.
Blade guard adapter
- Lightweight aluminum adapter
- Blade guard centering secured with three bolts
FEED CABLE
- Length 10 m
- Heavy-duty, durable construction
- Includes strain relief and protective end cap
SERVO CABLE
- Length 10 m
- Very solid design
- Weight only 7.8 kg
- Includes strain relief and protection cap
CONTROL POWER UNIT
- Air-cooled control box
- Simple, user-friendly touchscreen menu navigation
- Long service interval up to 250 operating hours
