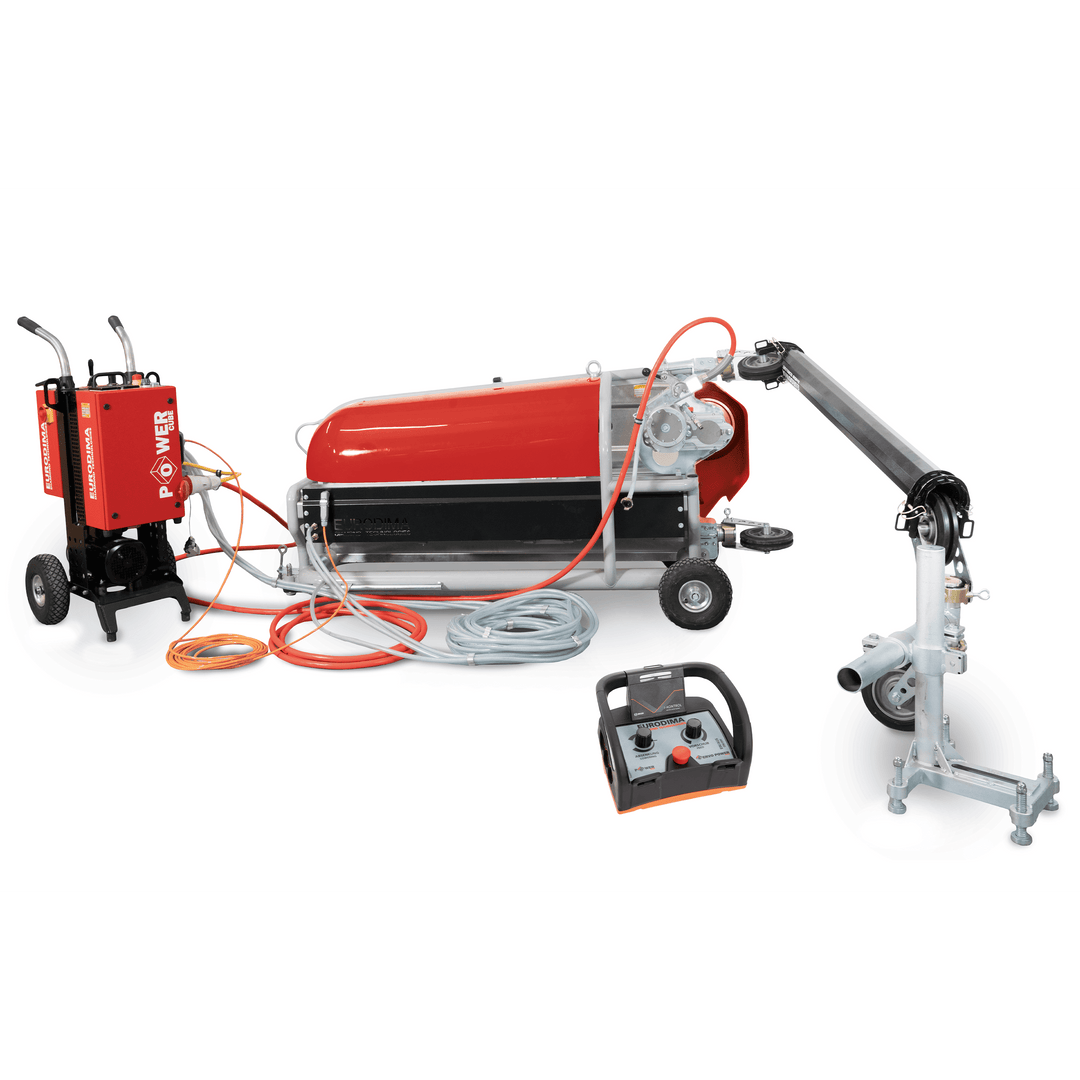

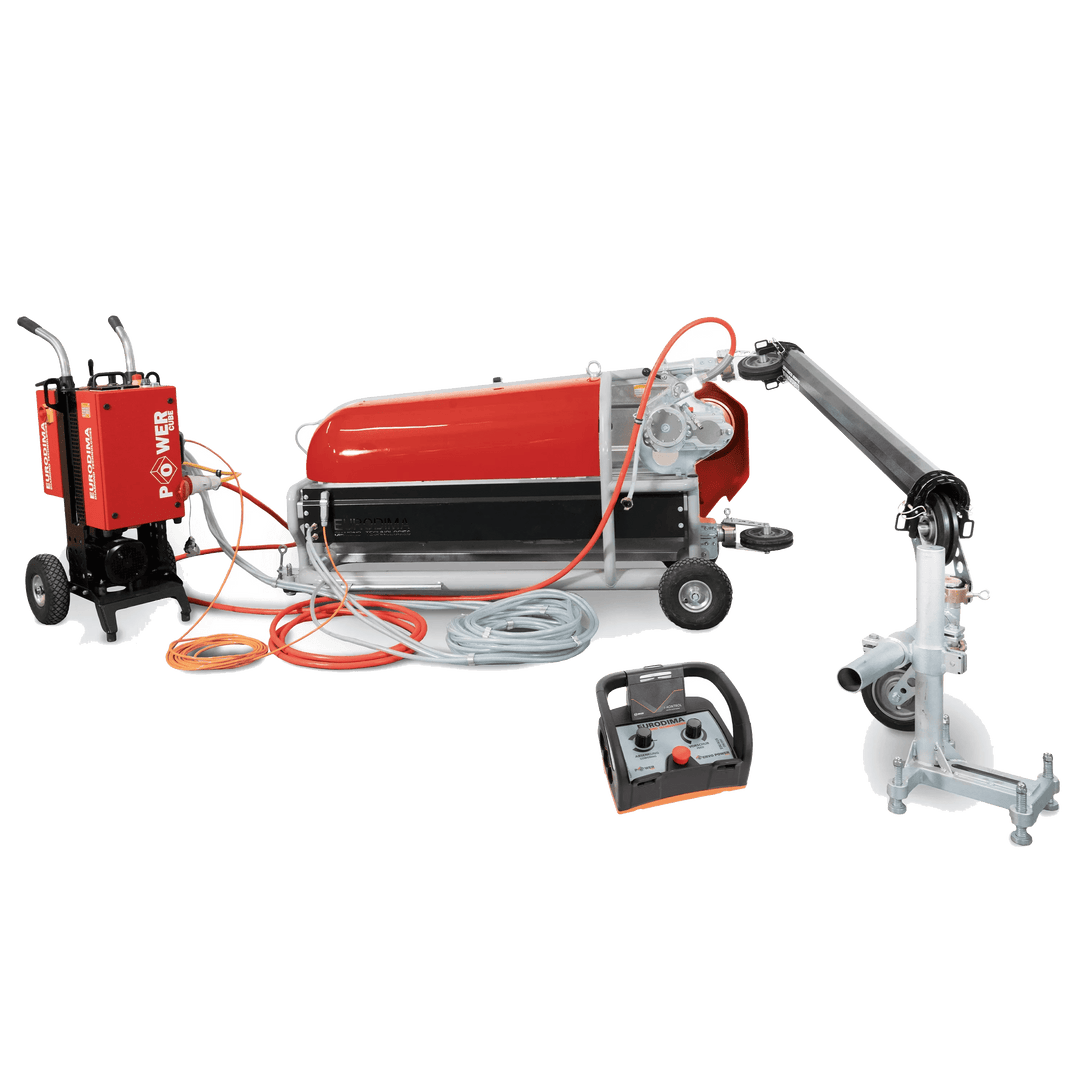

Wire Saw ServoPower – Superior Performance, Minimal Wear
The EURODIMA Wire Saw ServoPower system is engineered to deliver superior performance, safety and durability. A unique patent-protected electric-pneumatic system provides enhanced functionality with significantly reduced wear compared to similar products.
Versatile enough to be used as both a wire saw and a wall saw, it combines a lightweight, compact design with a modular build and an efficient wire storage system for quick, straightforward operation. Its rugged, high-torque drive guarantees reliable performance while keeping maintenance and transport effort to a minimum.
Powerful, modular and built to last – the professional choice for diamond wire cutting.
- Advanced electric-pneumatic system for increased safety and reduced wear
- Dual functionality: can be used as both a wire saw and a wall saw
- Modular drive system for versatile applications
- Lightweight and compact control unit for ease of use
- Two-speed gearbox for optimized cutting performance
- Robust and high-torque drive for demanding tasks
- User-friendly design with quick disassembly for transport
- Maintains consistent machine length even with full wire storage
- Lower swivel pulley on the pulling side for better maneuverability
- Durable, compact construction with low maintenance requirements
From structural demolition to precision wire cuts, the Wire Saw ServoPower delivers unmatched power, precision and reliability on every job.
Returns on machinery and powered equipment
This item is machinery / powered equipment and is not eligible for change-of-mind or incorrect-order returns. Please confirm the model, voltage, rail system and accessories with us before ordering — email sales@mesadiamond.com or call +1 305 391 3754 and we will confirm the correct configuration in writing.
This does not affect your rights if the item arrives defective, damaged in transit, or is not the item you ordered — those are handled at our cost under our warranty and return policy.
servopower in action

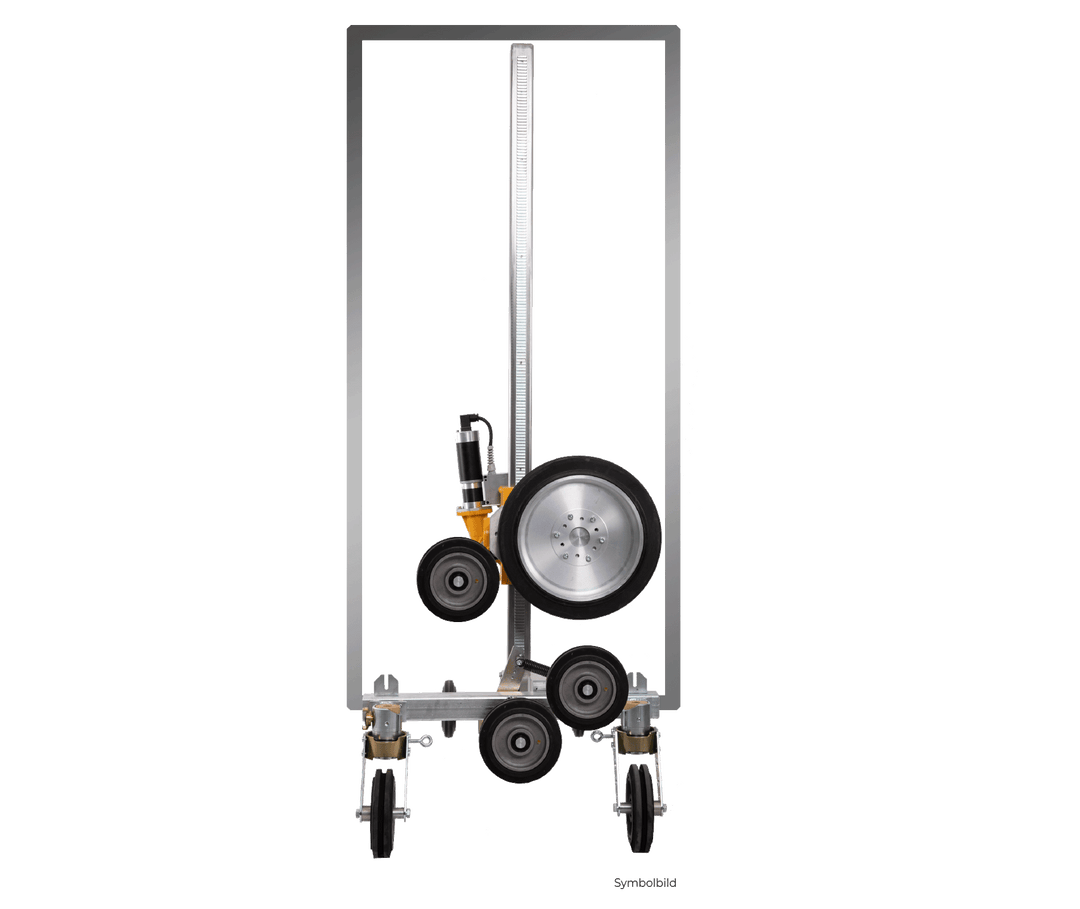

Wire saw (w/o drive)
- Rugged, compact design
- Easy to handle
- Low maintenance
Control unit PowerCube
- Air-cooled control box
- Simple, user-friendly menu navigation with touch screen
servo engine
- Powerful 20 kW motor
- High torque with low weight
- Long service interval after 250 operating hours
Motor ServoCable
- Cable length: 10 m
- Very solid and durable design
- Weight only 7.8 kg
- Includes strain relief and protection cap
WIRE STORAGE CABLE
- Auto stop for full wire storage
- Cable length 10 m
air hose kit
- Hose length 10 m
- Three-line system for pressure reservoir and pneumatic cylinders (front and back)
Transport trolley with compressor
- Control for the pneumatic unit
- Compact unit on a transport carriage
CABLE REMOTE CONTROL
- Simultaneous control of feed and swivel functions
- 10 m cable included
- Comes with abdominal support belt
WIRE SAWING ACCESSORIES
View all

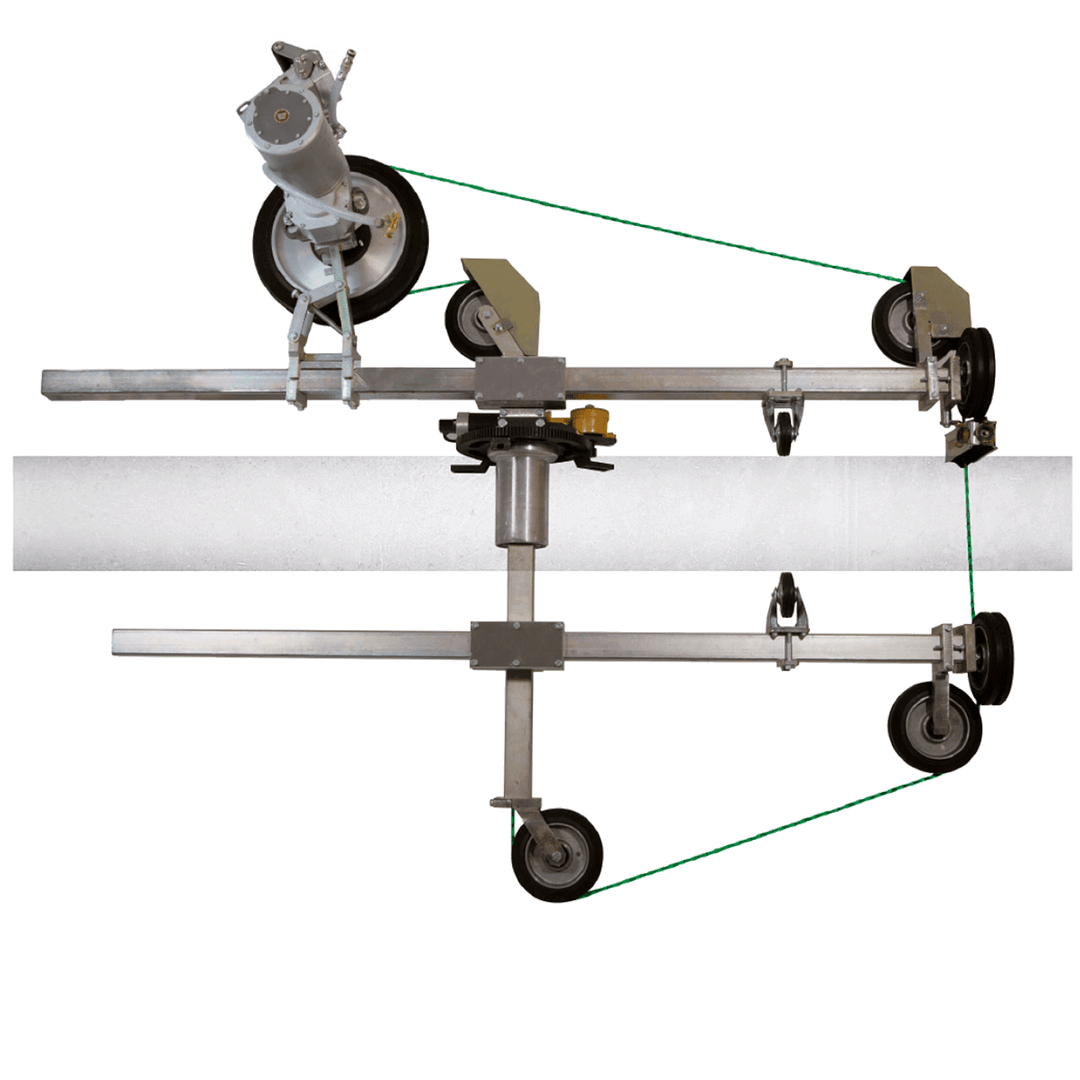

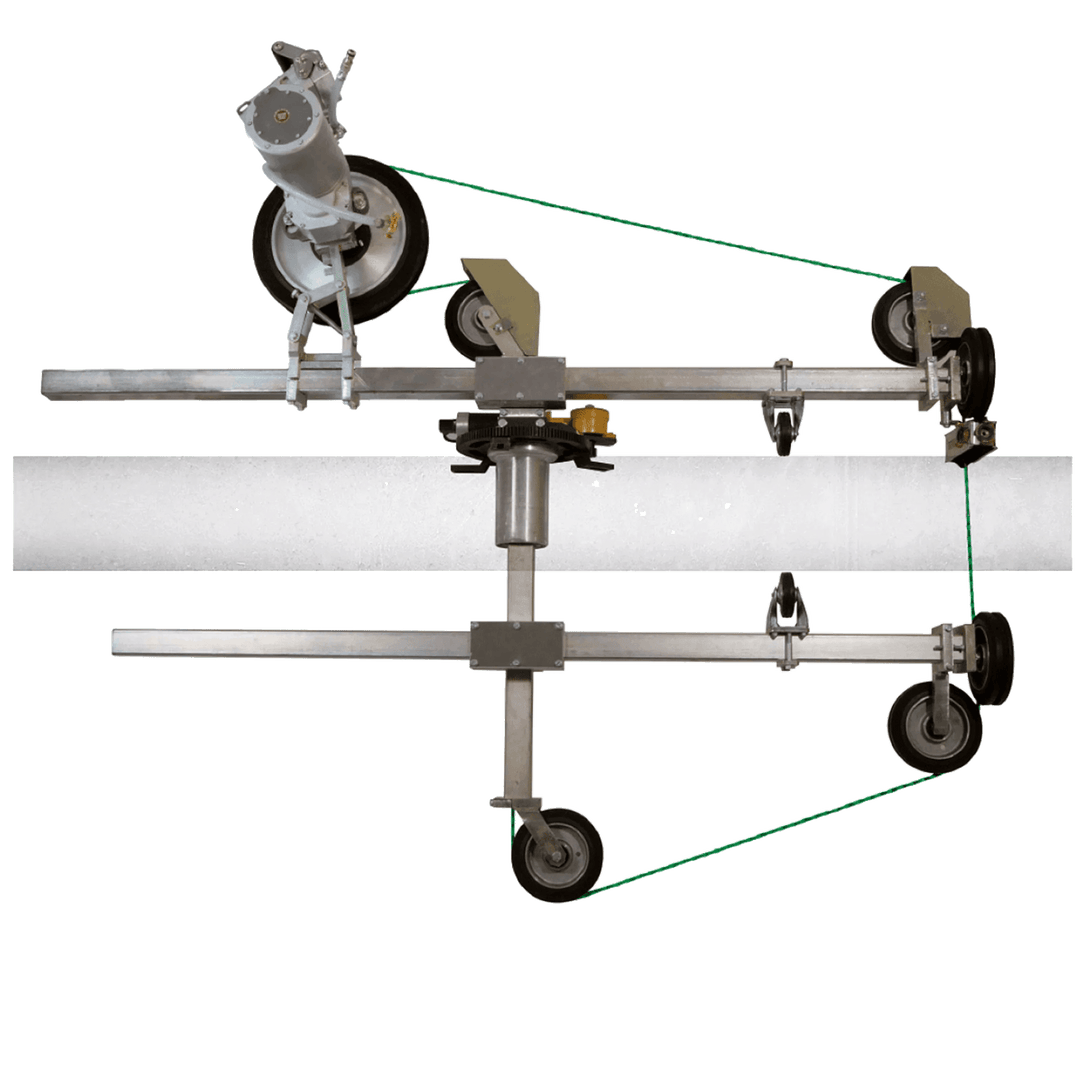

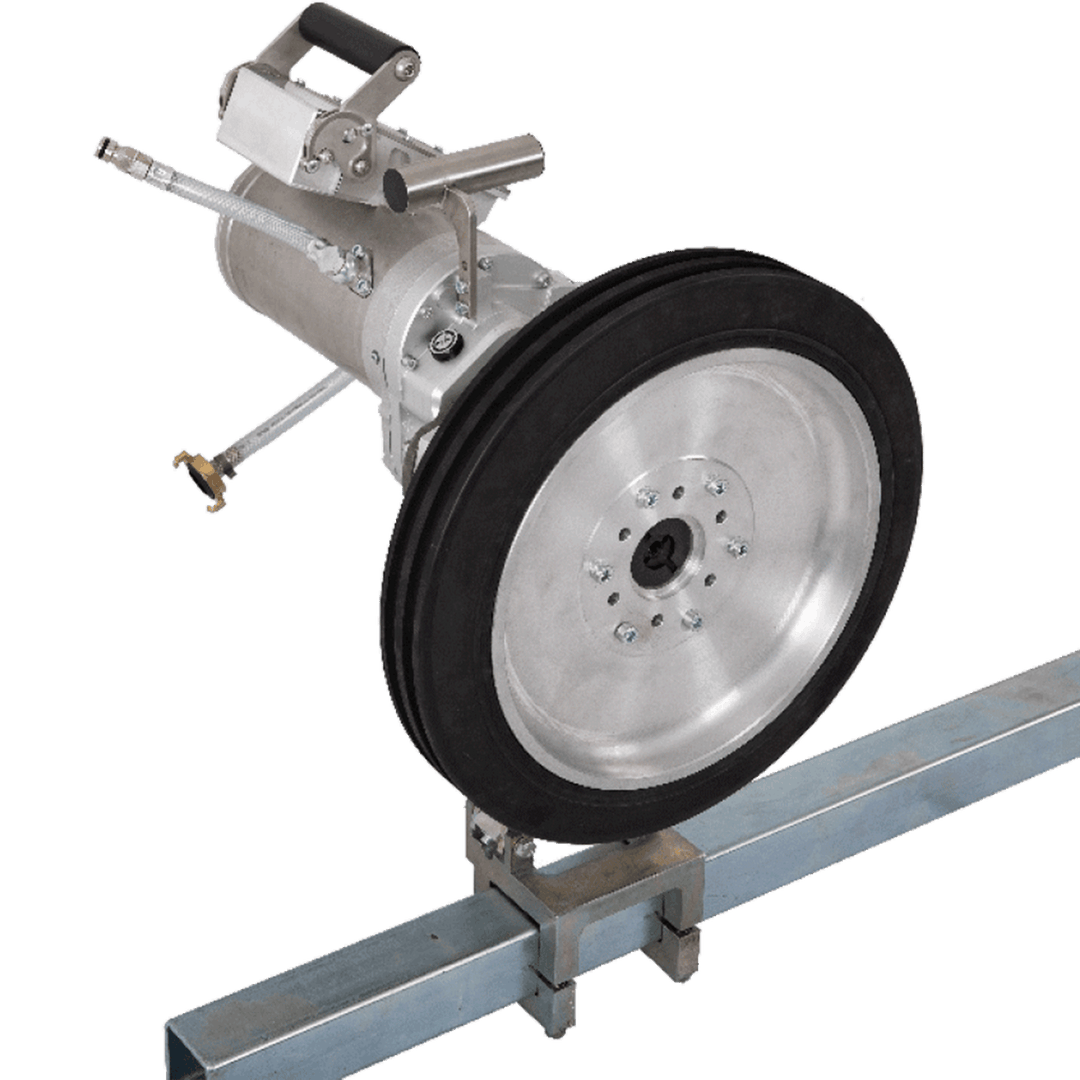

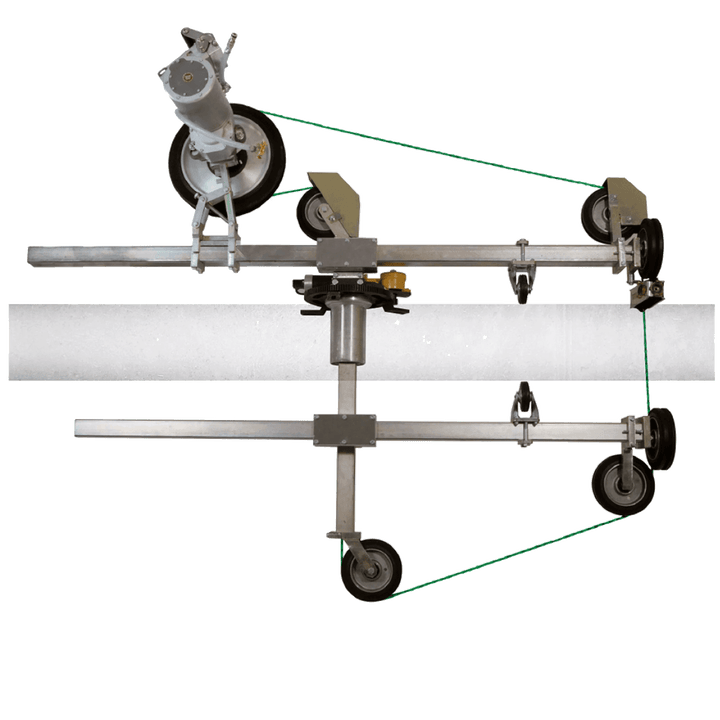

Circular Wire Saw
Regular price€22.562,95
Circular Wire Saw – Precise Circular Openings in Walls & Ceilings
Driven by powerful ServoPower components, the circular wire saw is the efficient solution for cutting round openings in ceilings and walls up to 800 mm thick. Because it uses your existing drive systems, it expands your capabilities while keeping investment costs low.
Clean, accurate circular cuts with continuously adjustable speed.
- Driven by powerful ServoPower components
- Ideal for creating circular openings in ceilings and walls
- Suitable for wall thicknesses up to 800 mm
- Uses existing drive systems to reduce investment costs
- Continuously adjustable cutting speed
Process Description
- Drill the center with a 125 mm diameter core drill
- Create a wire feed-through hole with a 15 mm diameter
- Secure the circular wire saw in place, install all components, and insert the saw wire
- Begin cutting, ensuring adequate water supply
- Stabilize the cut circle with wedges and support if necessary
- Complete the cut and disassemble the system
| / SPECIFICATIONS | |
| Cutting speed continuously adjustable | 1.8–32 m/s |
| Sawing diameter | 700 - 3500 mm |
| Maximum wall thickness | 800 mm |
| Weight | 110 kg |
| Drive pulley | Diameter 400 mm |
