You are mid-cut on a bridge pier. The wire is sailing through the concrete at a good rate, then it hits a curtain of #8 rebar and everything changes: the amperage spikes, the cut rate falls off a cliff, and by the end of the shift the beads look glazed and worn flat. Sound familiar? The problem usually is not the operator or the machine — it is that the wire was matched to the concrete, not to the steel inside it. On reinforced structures, rebar density is the single biggest factor in which diamond wire you should be running.
Why Rebar Is the Real Enemy, Not the Concrete
Cured concrete is abrasive but relatively soft — typically 3,000 to 6,000 psi compressive strength. Diamond beads shear through it fast. Steel rebar is a completely different cutting problem. Steel is dense, ductile, and generates far more heat at the bead face. A bead bond tuned to cut abrasive concrete will wear too quickly through heavy steel; a bond built to survive steel can polish (glaze) when it spends most of its time in soft concrete. The right wire is the one matched to the ratio of concrete to steel in the cross-section.
How to Estimate Rebar Density
Before you spool up, look at the drawings or expose a face and estimate the steel content by cross-sectional area:
- Light (under ~2% steel): single mat, #3–#5 bars, wide spacing. Slabs, light walls, curbs.
- Moderate (~2–4% steel): double mat, #5–#8 bars. Structural walls, columns, most bridge decks.
- Heavy (over ~4% steel): congested cages, #8–#11 bars, tight stirrups, embedded plates or post-tension anchors. Piers, foundations, nuclear and marine structures.
CSS vs SMV: Matching the Wire to the Steel

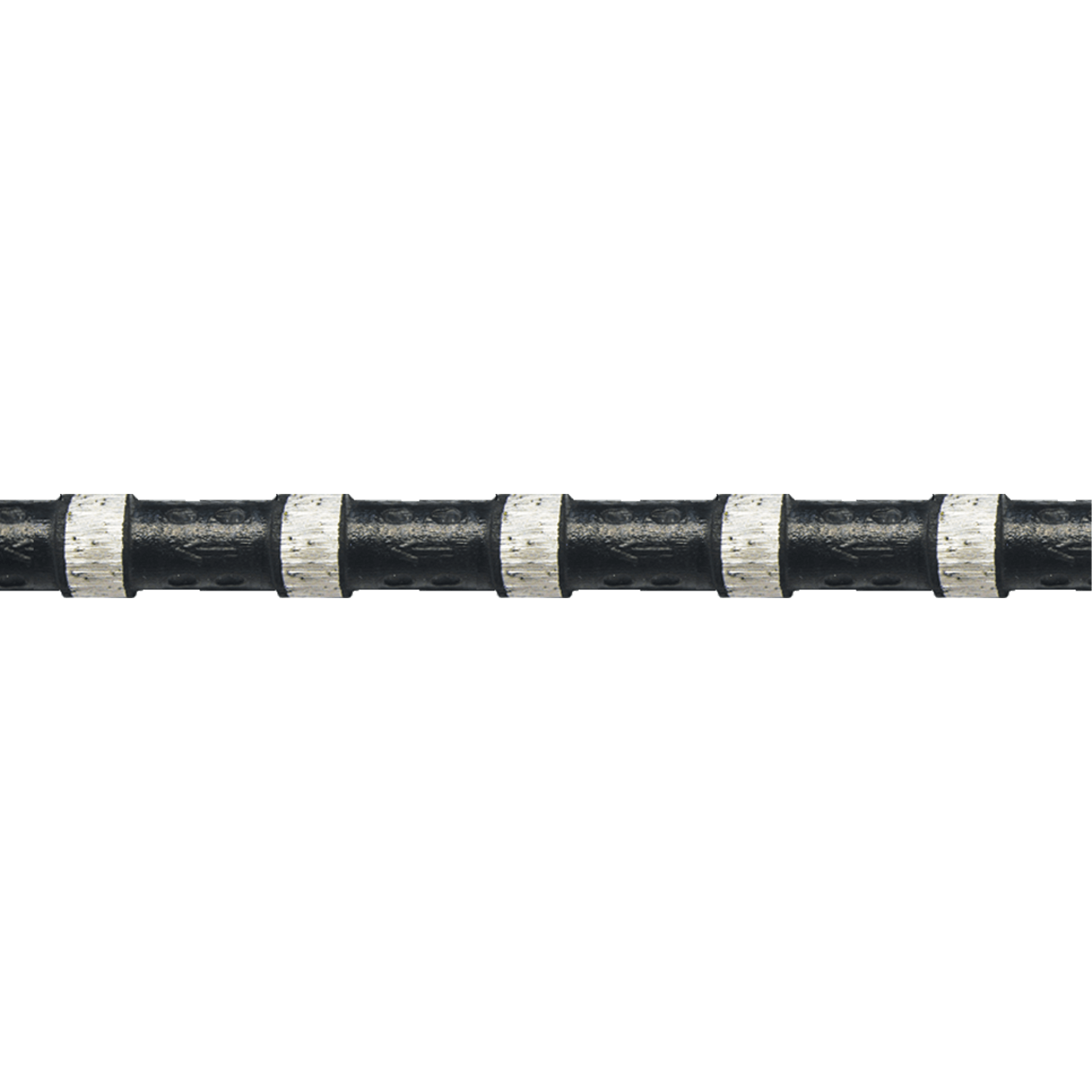

Mesa Diamond builds two wires for this exact decision. The Concrete Diamond Wire CSS uses a sintered bead optimized for the abrasive, mostly-concrete cut. The Steel/Metal Diamond Wire SMV uses a vacuum-brazed bead that holds up against dense steel and the heat it produces. Here is how they line up:
| Factor | CSS (Concrete Wire) | SMV (Steel/Metal Wire) |
|---|---|---|
| Bead type | Sintered | Vacuum brazed |
| Best for | Light to moderate rebar | Moderate to heavy rebar, embedded steel |
| Diameter | 10.5 mm | 10.5 mm |
| Bead count | 40 / 44 BPM | 40 / 44 BPM |
| Spool lengths | 33 / 50 / 100 / 164 ft | 33 / 50 / 100 / 164 ft |
| Fails when misused | Beads round over / glaze in heavy steel | Runs slower, wears faster in pure concrete |
A Simple Field Rule
Use this quick decision checklist on site:
- Mostly concrete, light steel: run CSS at 40 BPM. Faster cut rate, lower cost per foot.
- Heavy cage, embedded plates, post-tension anchors: run SMV. The vacuum-brazed bead survives the steel that would flatten a concrete wire.
- Mixed / unknown: when steel is 3–4% and inconsistent, SMV is the safer bet — a wire that survives is cheaper than a wire that fails mid-cut.
- Long production runs: step up to 44 BPM for more bead contact and a smoother cut face, and keep flush water at 4–8 gpm to clear slurry and control heat.
Do Not Forget Flush, Speed, and Tension
Even the correct wire underperforms if the setup is off. Keep peripheral speed in the 20–28 m/s range for reinforced concrete, maintain steady tension so the beads track straight, and never let the cut run dry — heat is what turns a healthy bead into a glazed one. When steel content jumps mid-cut, ease the feed pressure and let the diamonds do the work rather than forcing the wire.
When the Job Calls for a Blade Instead
Wire sawing wins on deep cuts, odd geometry, and full-depth pier work. But for flat slab work and lighter reinforced sections, a premium concrete blade is often faster and cheaper to run. The Concrete Diamond Saw Blade PRO BC200 (12"–20") handles reinforced slabs and walls with the same match-the-bond-to-the-steel logic — pick the method to the cut, then the tool to the steel.
Bottom Line
Read the steel, not just the concrete. Light reinforcement rewards a sintered CSS wire with faster cut rates and lower cost per foot; heavy, congested rebar demands a vacuum-brazed SMV wire that will not glaze or round over. Matching the bond to the rebar density is the difference between a clean, predictable cut and a wire that dies before the job is done.
