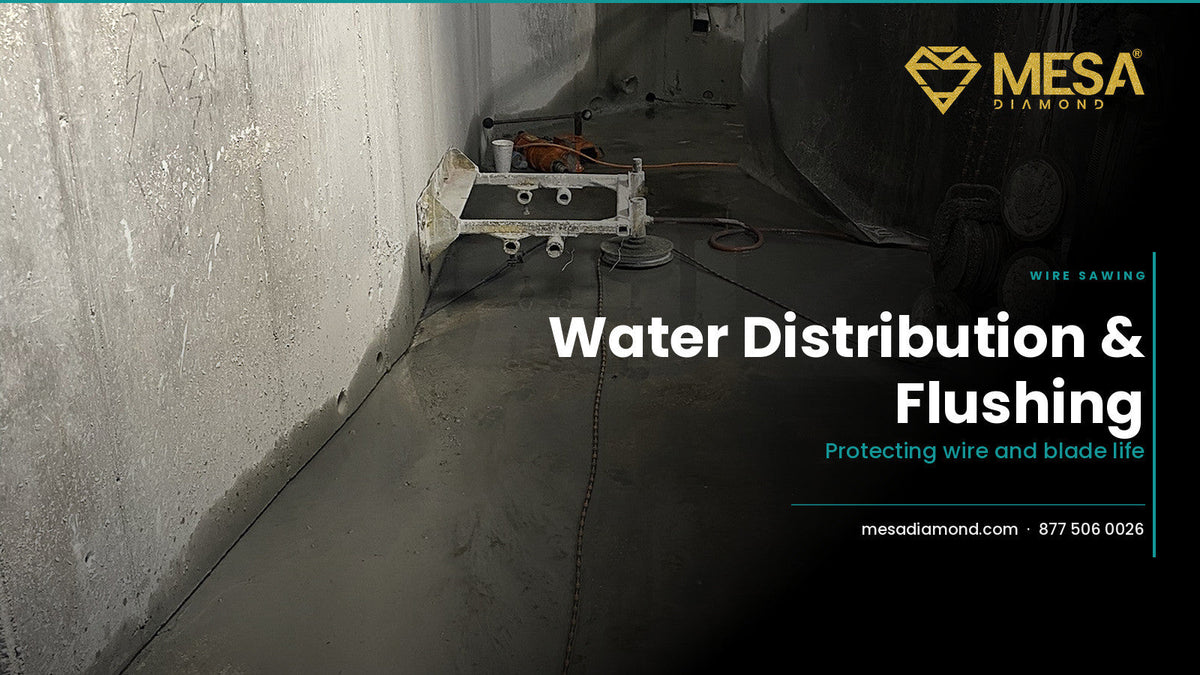

Diamond saw jobsite water distribution and flushing setup

Water Distribution and Flushing on Diamond Saws: How Water Flow Protects Your Bond, Your Cut, and Your Cost-Per-Foot

You are three feet into a deep flush cut with a diamond wire saw when the machine starts to bog. The cut slows, the wire runs hot, and by the time you back off, the beads have a shiny, blue-tinted glaze. The operator's first instinct is to blame the wire — wrong bond, worn beads, bad batch. But nine times out of ten on a job like this, the wire never had a fair chance. It was starved of water. On a diamond saw, water is not a courtesy. It is a cutting component, as important to your cost-per-foot as the bond itself, and how you distribute it decides whether a tool lasts a full job or dies halfway through the first cut.

What Water Actually Does in the Cut

Contractors tend to think of cutting water as coolant, and it is — but cooling is only one of four jobs it performs at the cut face. Understanding all four is what separates crews who fight their tools from crews who get predictable life out of them.

Cooling. Diamond bonds are held together by metal matrices that soften and burn when they overheat. Adequate water keeps the bead or segment in its working temperature range so the diamonds fracture and renew instead of glazing over.
Slurry flushing. Every cut generates fine rock and metal powder. If that slurry is not carried out of the kerf, it packs against the tool, polishes the bond, and re-cuts the same material twice — wasting energy and rounding your diamonds.
Bond exposure. A correctly flushed cut keeps the matrix eroding at the right rate so fresh diamond stays exposed. Starve the water and the bond over-hardens; drown it and the bond wears too fast.
Dust suppression. Wet cutting is the front-line control for respirable silica. Water at the cut is a safety system, not just a performance one.

Miss any one of these and the symptom shows up as a "tool problem" that no amount of switching consumables will fix.

Wire Saws: Delivering Water to a Moving Bead Line

A diamond wire is a continuous loop moving at high peripheral speed, so the water has to reach a target that is never in the same place twice. On most jobs the water is introduced at the cut entry and near the drive so it is carried along the bead line into the kerf. The two things that most often go wrong are aim and interruption: nozzles pointed at the machine instead of the cut, and supply lines that surge or drop pressure as the pump cycles.

Wire guide pulleys matter here more than crews expect. A clean, well-aligned wire path keeps the bead line where you want it, so the water you deliver actually lands in the cut rather than being flung off a wandering wire. Whether you run a 2-pulley swivel guide or a 3-pulley guide, a stable path and steady flushing are what let a concrete diamond wire hold a straight, cool cut through reinforced sections instead of glazing when it hits steel.

Wall Saws: Flushing a Blind Kerf

Wall and wire sawing share the same physics but face different water problems. A wall saw drives a blade deep into a kerf you often cannot see into, especially on vertical or overhead cuts where gravity works against you. Water has to be pushed to the deepest point of the cut and then carry the slurry back out against that same gravity. Under-flush a vertical wall cut and slurry collects at the bottom of the kerf, re-grinding the segment and dulling it from the inside out.

This is why machine-side water delivery is engineered into modern wall and wire systems rather than bolted on. Platforms like the Eurodima WM50/WM90 wall saw and the ServoPower wire saw are built to hold steady feed pressure and steady water together, because the two are linked: when feed and flushing are matched, the tool cuts at its designed rate and the water actually keeps up with the slurry being produced.

The Water Distributor's Job

The most overlooked piece on the whole rig is the part that splits and directs the supply. A water distributor takes a single feed line and delivers balanced flow to the points that need it — the cut entry, the guide pulleys, the drive interface — so no single zone is starved while another is flooded. Without balanced distribution, the nozzle nearest the pump gets everything and the far side of a long cut gets almost nothing, which is exactly the condition that produces one-sided glazing on a wire that "should have lasted longer."

Reading the Water: Too Little, Correct, Too Much

You do not need a flow meter to diagnose water on the jobsite. The tool and the slurry tell you everything. Use this as a field reference:

Condition	What you see	What it costs you
Water starved	Steam or dry dust at the cut, hot beads/segments, blue glaze, slowing feed, whining tool	Burned bond, glazing, short tool life, silica exposure
Correctly flushed	Thin, steady slurry stream carrying grit out of the kerf; cool tool; consistent feed	Full rated life, straight cuts, lowest cost-per-foot
Over-watered	Clear water washing out with little grit, bond wearing visibly fast, wasted water	Premature bond loss, higher consumable spend, slurry management headaches

The target is the middle row: a slurry that looks like the tool is doing work and the water is carrying that work away. Clear runoff means you are washing the cut instead of flushing it.

Flow, Not Just Volume

Crews often try to fix a water problem by cranking the supply wide open. Total volume matters, but where and how steadily the water arrives matters more. A modest, well-aimed, uninterrupted flow to the cut face outperforms a large but surging or misdirected supply every time. The practical checklist before a deep cut is simple: confirm the nozzles point into the kerf and follow the tool, confirm the distributor is feeding every zone, and confirm the pump holds pressure without surging as it cycles. Get those three right and the same wire, blade, or segment you were fighting will cut cooler, straighter, and longer.

Water Is an Operations and Safety Decision

Finally, water at the cut is where cutting performance and jobsite compliance meet. The same steady flushing that protects your bond is the control that keeps respirable silica down to a safe level under wet-cutting practice. Dialing in distribution is one of the rare adjustments that improves your cost-per-foot and your crew's safety at the same time — which is why it belongs in your setup routine, not in your list of things to check only after a tool fails.
